Optical Filter MTF-VOA Preliminary

Variable Attenuator-integrated Optical Tunable Filter

MTF-VOA

Compact size: 7.5 × 5.5 × 3.5 (W×D×H)
Independent configuration of transmission wavelength and optical attenuation
Minimum fiber bend radius: 5 mm
Compatible with fibers with cladding diameter of 80 µm
12V low voltage operation

Datasheets

Overview

The MTF-VOA is an integrated optical component that combines a variable optical attenuator (VOA) and a tunable optical filter (MTF), based on our proprietary electrostatic MEMS technology.

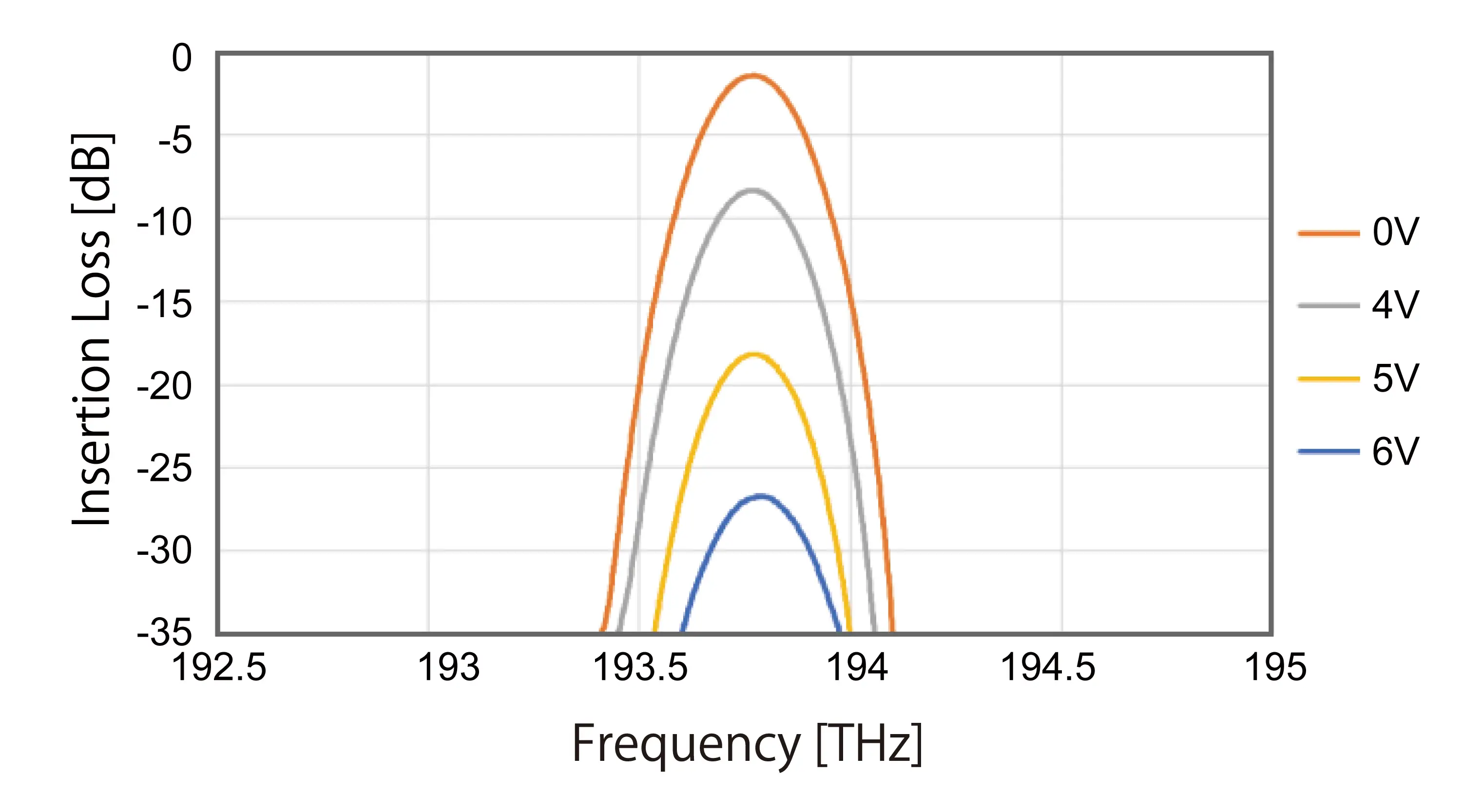

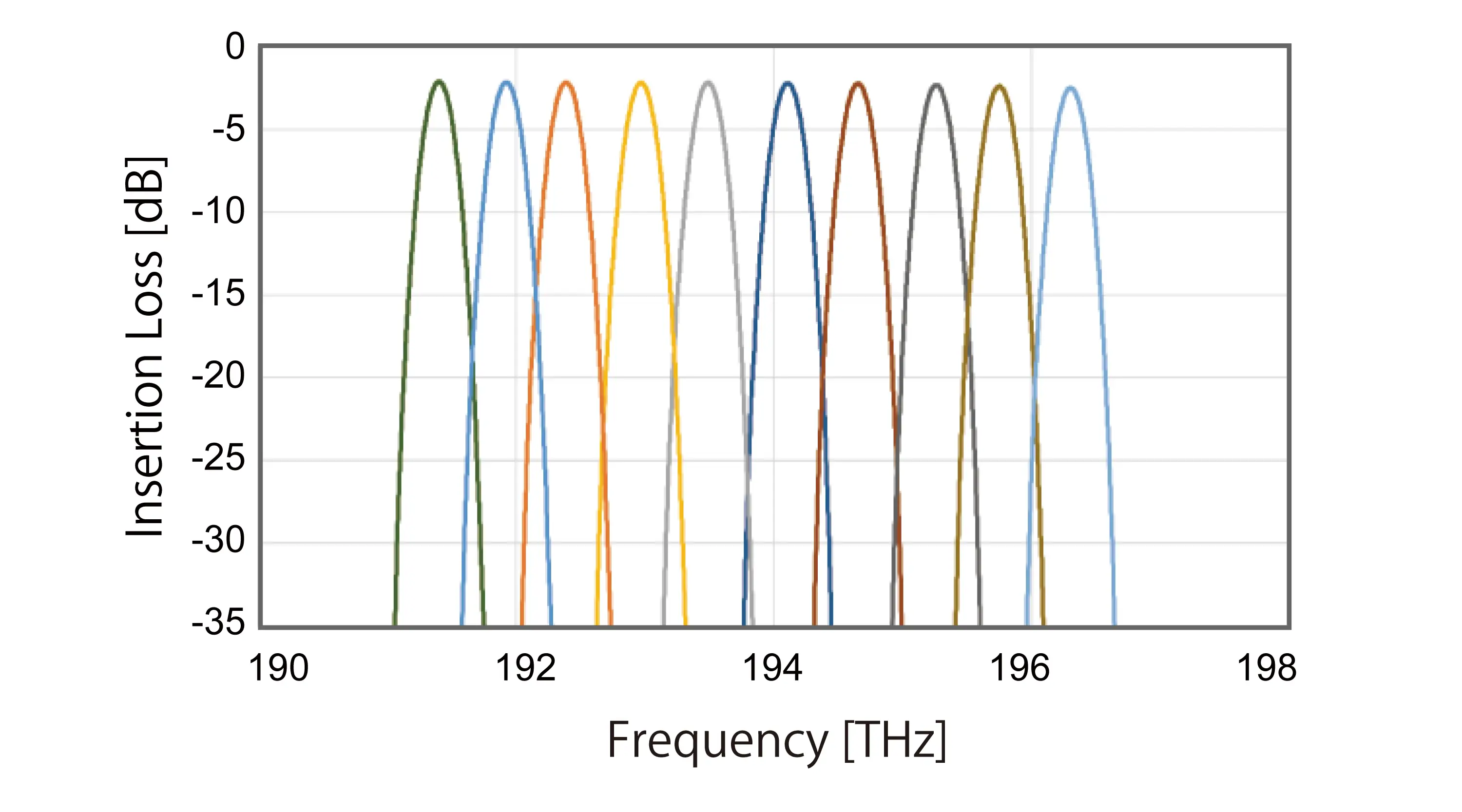

It enables independent adjustment of the central transmission wavelength (tuning range: approx. 40 nm) and control of the optical attenuation up to 35 dB independently, achieving two functions in a single unit.
With an ultra-compact package (7.5 × 5.5 × 3.5 mm) and low 12 V operation voltage, the new device is ideal for use in next-generational small form factor (SFF) optical transceivers such as QSFP-DD and CFP2-DCO, which require smaller size and lower power consumption.

Compact size

It offers many advantages, including high-density mounting, low power consumption, and improved design freedom.
Ultra-narrow with a 3 dB bandwidth of 50 GHz

The ultra-narrow 50 GHz (3 dB) passband suppresses interference from adjacent channels, enabling more precise wavelength selection and signal separation.
Telcordia GR-468 compliant

It can be safely installed for a long time in communication infrastructure that requires high reliability and durability.
RoHS-compliant

It is environmentally friendly, RoHS-compliant, limits the use of harmful substances, and supports sustainable product creation.
