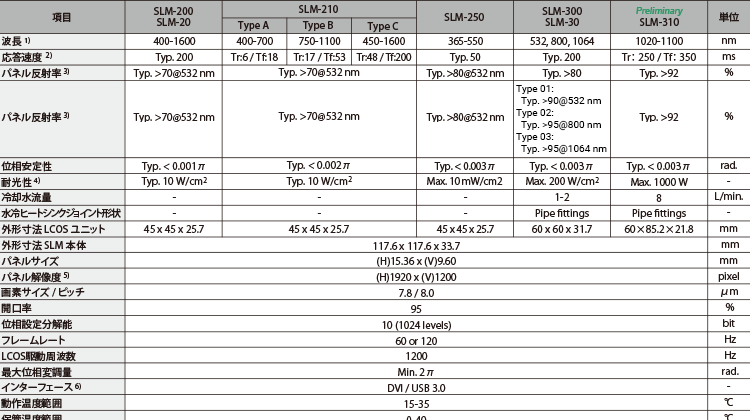

Spatial Light Modulator - Specification Comparison Table
Swipe left and right to view
| Item | Unit |
SLM-200 SLM-20 |
SLM-210 | SLM-250 |
SLM-300 SLM-30 |
Preliminary SLM-310 |
|||
|---|---|---|---|---|---|---|---|---|---|
| Type A | Type B | Type C | |||||||
| Shape |  |
 |
|
|
 |
 |
 |
||
| Wavelength 1) | nm | 400-1600 | 400-700 | 750-1100 | 450-1600 | 365-550 | 532, 800, 1064 | 1020-1100 | |
| Response speed 2) | ms | Typ. 200 | Tr:6 / Tf:18 | Tr:17 / Tf:53 | Tr:48 / Tf:200 | Ty p. 50 | Typ. 200 | Tr: 250 / Tf: 350 | |
| Panel reflectance3) | % | Typ. >70@532 nm | Typ. >70@532 nm | Typ. >80@532 nm | Typ. >80 | Typ. >92 | |||
| Phase stability | rad | Typ. < 0.001π | Typ. < 0.002π | Typ. < 0.003π | Typ. < 0.003π | Typ. < 0.003π | |||
| Power handling4) | W/cm2 | Typ. 10 W/cm2 | Typ. 10 W/cm2 | Max. 10 mW/cm2 | Max. 200 W/cm2 | Max. 1000 W | |||
| Cooling water flow rate | L/min. | - | - | - | 1-2 | 8 | |||
| Water-cooled heat sink joint shape | - | - | - | - | Pipe fittings | Pipe fittings | |||
| Dimensions of LCOS unit | mm | 45 x 45 x 25.7 | 45 x 45 x 25.7 | 45 x 45 x 25.7 | 60 x 60 x 31.7 | 60 x 85.2 x 21.8 | |||
| Dimensions of SLM main unit | mm | 117.6 x 117.6 x 33.7 | |||||||
| Panel Size | mm | (H)15.36 x (V)9.60 | |||||||
| Panel resolution 5) | pixel | (H)1920 x (V)1200 | |||||||
| Pixel size/pitch | μm | 7.8 / 8.0 | |||||||
| Aperture ratio | % | 95 | |||||||
| Gray level | bit | 10 (1024 levels) | |||||||
| Frame rate | Hz | 60 or 120 | |||||||
| LCOS driving frequency | Hz | 1200 | |||||||
| Maximum Phase Modulation | rad. | Min. 2π | |||||||
| Interface 6) | - | DVI / USB 3.0 | |||||||
| Operating Temperature Range | ℃ | 15-35 | |||||||
| Storage Temperature Range | ℃ | 0-40 | |||||||
| Control Software | - | GUI software and SDK for Windows: C#, Python, Matlab, Labview | |||||||
Wavelength range
<AR coating option: SLM-200, 20, 210>
| Item | Unit | -00 | -01 | -02 | -03 | -04 | -12 | -14 | -21 |
|---|---|---|---|---|---|---|---|---|---|
| AR Coating Wavelength Range7) | nm | No coating | 450-550 | 750-850 | 1000-1100 | 1500-1600 | 400-700 | 450-550 /1500-1600 |
450-1600 |
| AR Coating Reflectance8) | % | 4 | < 0.5 | < 1.5 | < 0.6 | < 2.5 | |||
1) SLM-200, 20, 210: No AR coating.
Please refer to the table for the available AR coating range.
2) Response times are typical values and are not affected by frame rate.
Tr: The time required for the phase to change from 10% to 90% when changing from 0 to 1023 bits (2π rad.) at room temperature (25°C)
Tf: The time required for the phase to change from 90% to 10% when changing from 1023 (2π rad.) to 0 bit at room temperature (25°C)
3) 0th order diffracted light. The reflectance varies depending on the specified wavelength range.
4) Power handling is not guaranteed.
Depending on the specifics of the laser oscillator you use, damage may accumulate and significantly shorten the product's lifespan.
SLM-200, 20, 210: CW 1550 nm, beam diameter 2 mm
SLM-250: Max. 10 mW/cm2: @365 nm, 24H/day continuous operation
SLM-250: Typ. 40 mW/cm2: Peak power @355 nm, pulsed laser
SLM-300, 30: CW @1064 nm
SLM-310: CW 6.5mm@1070nm
5) We cannot guarantee against defects in LCD pixels.
6) DVI: 10-bit using RGB 8-bit, 3 colors
7) We also accept requests for custom AR coatings. Please contact us for details.
8) Value at an incidence angle of 0°.
